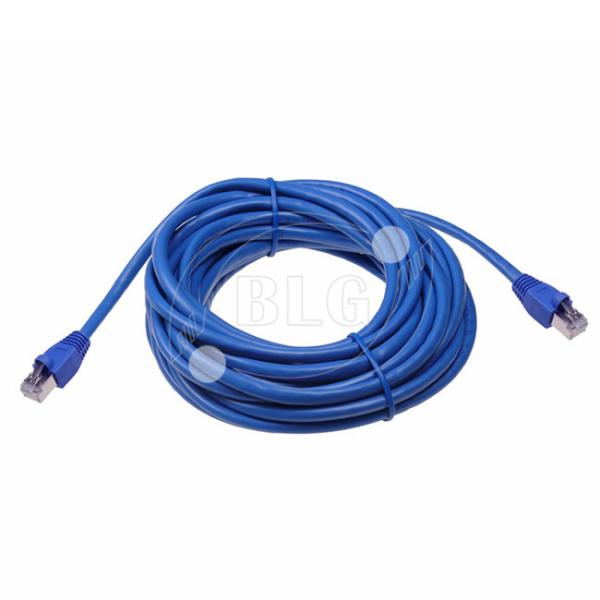

Full Copper STP Patch Cord Cat7 with Gold Plated RJ45 Male Plugs
and Plug Boots
Product Features
Standard: Category 7, 8P8C ( RJ45 ) Plug, STP Shielded. FLUKE Test, Meets
TIA / EIA - 568 - B. 2 - 10 Specifications
High Performance: Cable Creation provides performances of up to 600MHz and speeds of
up to 10Gbps. Wherever you would use a CAT5e / CAT6 cable, our
ultra slim Cat7 cables will achieve the same or better performance.
Excellent Signal Quality: Compared to the Cat6, cat6a, network Ethernet cable, the
additional shielding and improved quality in twisting of the wires
provides better protection from crosstalk, noise, and interference
that can degrade the signal quality.
Cable Material: 23AWG / 24AWG Solid or Stranded BC STP Cat7 Cable, Pair Shield
Cable Length: 0.25m ~ 30m available
Connector: made by Polycarbonate ( PC ), 8P8C, Gold Plated Blade
Color: Blue, Black, Red, Yellow, Grey, White etc.
Universal Compatibility: Compatible with all CAT5, CAT5e, CAT6, CAT6a applications; 10 BASE
- T, 100 BASE - TX, 1000 BASE - T, and 10G BASE - T; ANSI / TIA /
EIA 568B. 2 - 1.
Wide Applications: work well with computers and network components, such as Desktop,
Laptop, routers, switches, hubs, Modem, DSL, network printers, game
boxes and network attached storage devices, X - box, PS2, PS3, Ps4,
game boxes with RJ45 port and etc.
| Wiring Scheme |
| 8 - Position Conductor / Pair Assignment |
| T568B: 1 - 2 / 3 - 6 / 4 - 5 / 7 - 8 |
| T568A: 3 - 6 / 1 - 2 / 4 - 5 / 7 - 8 |
| Cordage |
| Construction: 7 Strands or Solid, 23AWG, 4 Pairs Shielded | Pair Identification: Pair 1= Blue/White Pair 2= Orange/White Pair
3= Green/White Pair 4= Brown/White |
| Cable Type: STP Cat7 Patch Cable |
| Outer Cable Diameter: 7.0mm ± 0.2 mm | Outer Jacket: PVC/LSZH Jacket |
| PLUG: |
| Item: RJ45 8P8C Modular Plug |
| Type: Metal Shielded |
| IDC Blades: Phosphor Bronze, 100 micro inches nickel under plated &
Gold selected |
| MECHANICAL |
| Retention: 50 N ( 11 lbf ) for 60 ± 5 s | Installation Temperature: 0°C to +60°C |
| Mating cycle life: min 750 cycles | Operating temperature: -20°C to +60°C |
| Tensile strength: ≥ 20 N per wire | Minimum bend radius: 4 outer cable diameters |
| Boot Type: Cat7 RJ45 Plug Boots |
Packing Details:
- PE Bag
- Blister Bag
- Color Box
- for Short Patch Cable ( 1M ~ 20M ), 1 Piece per PE Bag, 200 Pieces
per Carton
- for Long Patch Cable (30M ~ 50M), 1 Piece per Color Box, 50 Pieces
per Carton
Delivery time:
As for one 20'GP container, we can finish them 20 - 25 days after
receiving the deposit and we usually complete the order within 10 -
15 days. It also depends on the items and the order quantities.
Payment terms:
1) L / C at sight
2) T / T: 30% deposit by T / T, 70% balance by T / T before
shipment
3) Western Union: 30% deposit, 70% balance before shipment
